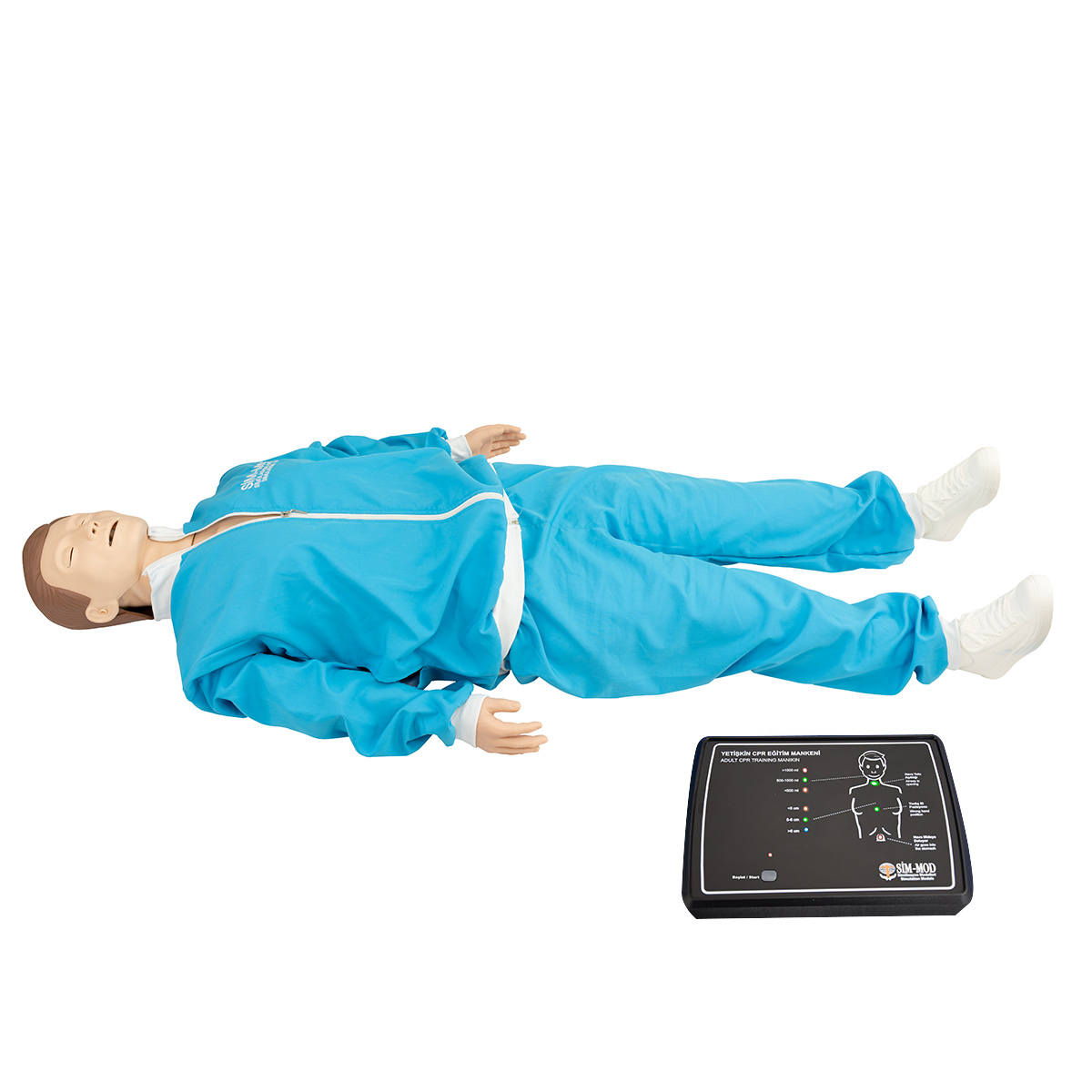

FULL-SIZE ADULT CPR TRAINING MANIKIN (WITH CONTROL DEVICE)
TECHNICAL SPECIFICATIONS
Dimensions: 164 × 46 × 23 cm
Weight: 10.28 kg
KEY FEATURES
Full-Sized Adult
• High-quality and durable material
• Realistic anatomical structure
• Elastic chest, neck, and facial skin
• Prominent anatomical features, including nipples, clavicle, xiphoid process, and ribs
• Replaceable face skin, neck skin. (sold separately)
• CPR control device
• One-way valve system that ensures the air provided to the manikin flows in a single direction, effectively preventing any backflow
• A steel spring system designed to provide realistic chest compression during CPR while preventing collapse during application
GENERAL APPLICATIONS
- The simulator features a movable neck, arms movable from the shoulders, and flexible sponge-structured lower extremities that provide ease of transportation.
- One eye is designed with a normal pupil, while the other has a mydriatic (dilated) pupil, enabling neurological assessment simulation.
- The carotid pulse can be assessed by squeezing the plastic pump (bulb).
- The head and neck can be positioned to perform airway-opening techniques. The accuracy of the procedure can be verified through the indicator light system on the CPR control device.
- Artificial ventilation can be performed through the mouth and nose. The mouth is designed to accommodate a resuscitator. Realistic chest rise can be observed.
- During artificial ventilation, insufficient, adequate, and excessive ventilation, as well as gastric inflation, can be monitored through the indicator light system on the CPR control device.
- During cardiac massage, insufficient, adequate, and excessive compressions, as well as correct hand positioning, can be monitored through the indicator light system on the CPR control device.
- CPR controller can be re-charged and it can work for 4 hours with full battery.
Note: Images used in this catalog are for illustrative purposes only. Models and brands of clothing and accessories may vary.
